The effect of synchronisation of geomagnetic field variations and heartbeat parameters in humans: the possible role of the autonomic nervous system



Cite item

Full Text

Abstract

BACKGROUND: … Variations in the geomagnetic field (GMF) represent a significant environmental factor with a considerable impact on human well-being and functional state, particularly in relation to the cardiovascular system. Concurrently, the biophysical mechanism underlying this influence, as well as its phenomenological manifestation across different spatial and temporal scales, remain poorly understood. In this study, we extend our investigation of the impact of synchronising human resting heart rate (HR) oscillations with GMF variations in the millihertz frequency range (periods of 3-40 min) ('biogeosynchronisation effect'), which we previously identified.

AIM: The objective of this study is to assess the potential involvement of the autonomic nervous system as a transmission link in the formation of the human body's response to fluctuations in GMF.

METHODS: During 2012-2024, 673 resting ECG R-to-R interval recording experiments were performed in eight practically healthy volunteers (Group 1, multiple recordings of each subject, lasting 100-120 min) and in a group of 39 subjects (Group 2, single recordings lasting 60 min each). The frequency of occurrence of the biogeosynchronisation effect of minute-by-minute time series of heart rate (HR) and statistical indices of heart rate variability (HRV) was compared. Cross-correlation and wavelet analysis methods were used

RESULTS: The distributions of the percentage of cases of synchronisation of SR parameters with the components of the GMF vector, obtained in general for the whole sample of experiments using the correlation analysis method, indicate a value of 32% for HR and 9-17% for HRV parameters. These values demonstrate a difference of twofold or greater. In accordance with the criterion of similarity of wavelet spectra, the effect of synchronisation was observed in 40% of cases for HR and in 24-28% for HRV parameters. The sample distributions obtained individually for each volunteer in Group 1 and cumulatively for all volunteers in Group 2 yielded analogous results.

Full Text

Funding source. The work was carried out within the framework of the State Assignment of ITEB RAS No. 075-00224-24-03, State Assignment of IKI RAS, topic "Plasma", State Assignment of IBCP RAS (44.1. state topic number 0084-2019-004) and State Assignment of FGBUN FITC RAS Ural Branch No. 122011300469-7

Competing interests. The authors declare that they have no competing interests.

Author contribution. T.A. Zenchenko ‑ development of the research concept, data analysis, preparation and writing of the article; L.V. Poskotinova ‑ development of the research concept, data collection, editing of the article; N.I. Khorseva ‑ data collection, editing of the article; T.K. Breus ‑ literature review, collection and analysis of literary sources, writing of the text and editing of the article.

Acknowledgments. The results presented in this paper were obtained using geophysical data collected by Nurmijarvi and Borok observatories. The authors thank the Finnish Meteorological Institute and Borok Geophysical Observatory for providing the data and for their work within the INTERMAGNET project to disseminate high standards of geophysical observations. The authors also thank M.E. Diatroptov, A.A. Stankevich and A.E. Elfimova for their assistance in data collection.



TABLES

Table 1. List of volunteers of Group 1, anamnestic data and mean values of measured parameters. Mean values of indicators are given in the format Me (1 sq.; 3 sq.)

Номер

волонтера

Пол

Возраст

n

ЧСС

RMSSD

SDNN

AMO

SI

V1

ж

59

333

69.3

(65.2;

73.0)

21.9

(16.5;

27.9)

26.7

(20.9;

32.4)

59.8

(53.88;

66.0)

334.9

(239.6;

485.8)

V2

ж

45

165

61.6

(59.6;

63.6)

36.9

(29.4;

45.9)

31.7

(27.7;

35.5)

52.6

(47.3;

57.2)

197.1

(157.3;

234.8)

V3

ж

30

64

63.8

(60.2;

69.2)

45.3

(35.8;

52.9)

48.4

(41.3;

52.3)

38.7

(36.7;

44.0)

100.1

(83.4;

141.8)

V4

м

37

19

78.7

(75.6;

79.7)

18.8

(16.4;

21.6)

39.0

(36.0;

41.6)

46.6

(44.5;

48.3)

215.0

(185.5;

232.6)

V5

ж

53

10

80.1

(74.3;

80.3)

19.5

(17.5;

23.4)

28.0

(26.7;

30.4)

55.1

(51.8;

57.6)

308.8

(260.4;

358.7)

V6

м

59

10

62.5

(60.5;

63.1)

18.2

(16.5;

21.6)

25.0

(23.0

29.0)

60.9

(57.9;

63.6)

309.6

(249.0;

380.7)

V7

ж

42

11

71.9

(66.5;

73.5)

42.1

(36.2;

46.4)

45.8

(42.9;

49.9)

42.3

(38.5;

43.1)

128.6

(103.2;

146.6)

V8

ж

27

10

77.3

(73.5;

79.0)

40.6

(34.4;

47.4)

58.8

(53.8;

65.9)

33.8

(32.1;

35.8)

88.7

(73.9;

106.9)



Table 2. An example of the results of assessing the similarity of time series of physiological indicators and the GMF vector in the experiment is shown in Fig. 1 and 2.

ФП

|Ks|

Qx

ЧСС

6.53

0.522

RMSSD

3.65

0.574

SI

2.43

0.472

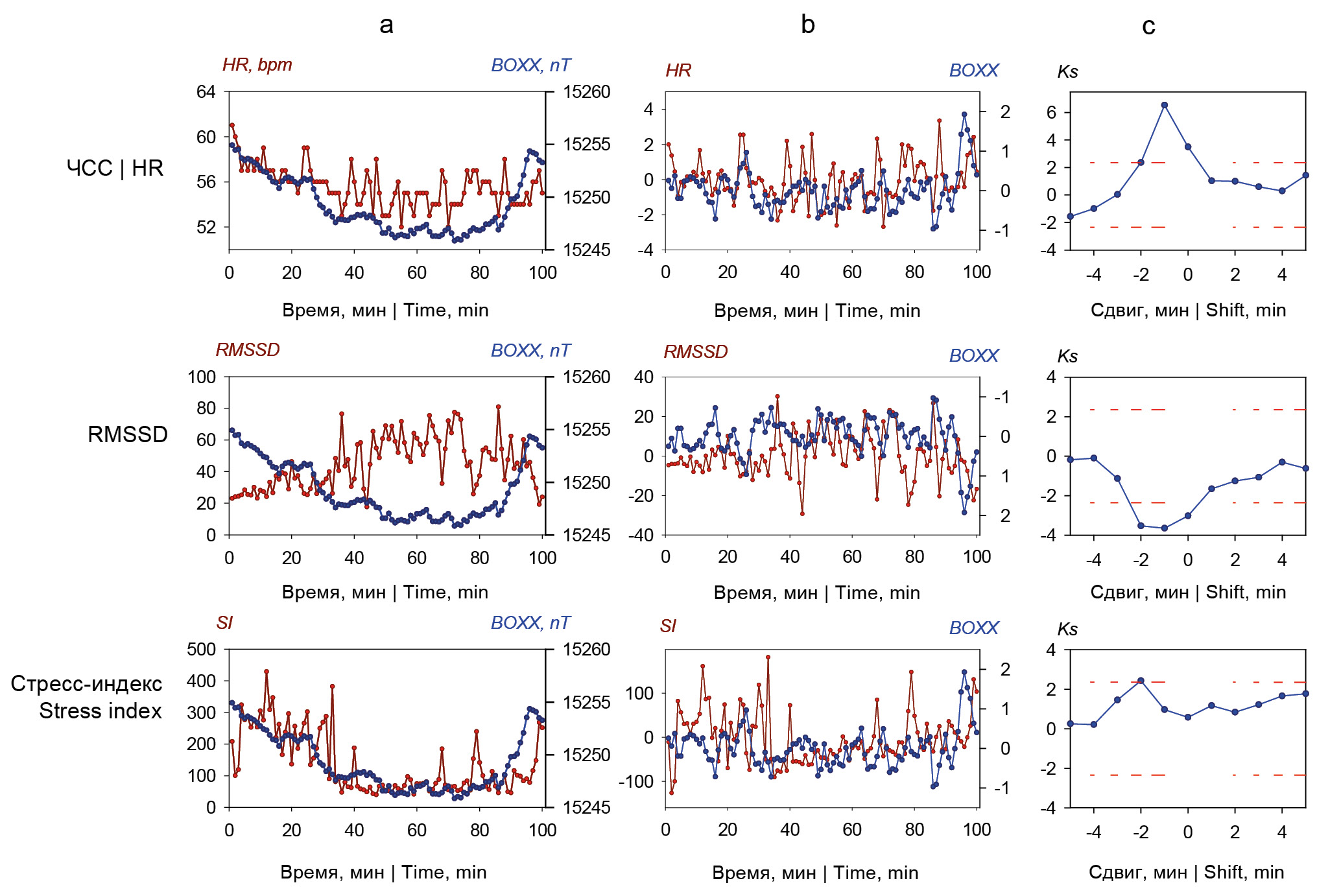

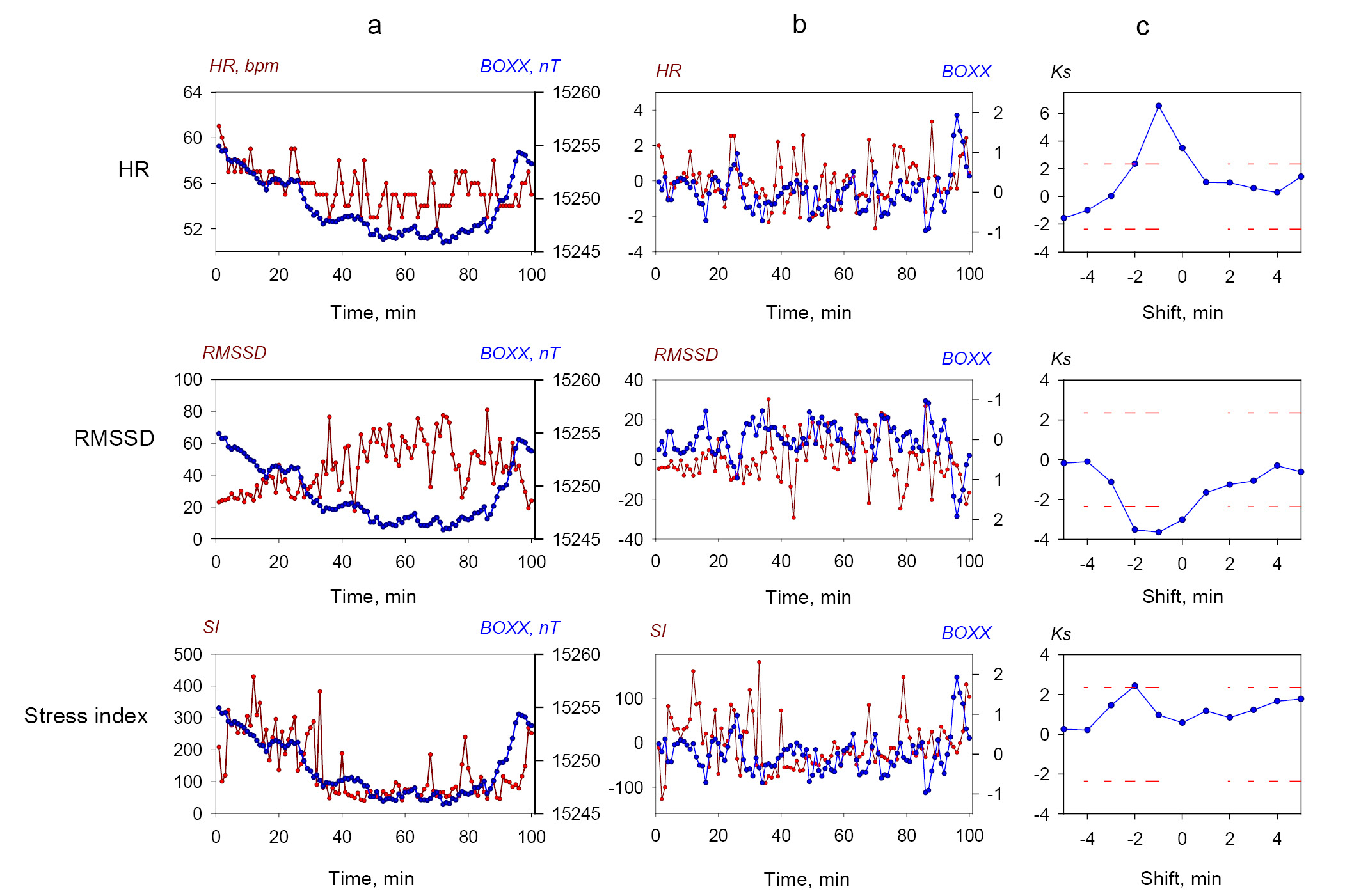

Fig. 1. Illustration of the correlation method for assessing the synchronization of physiological parameters HR, RMSSD, SI with variations in the X component of the GMF. (a) superposition of the original physiological parameters series (red) and the horizontal component of the GMF at the Borok geophysical station (BOXX, blue); (b) - superposition of the filtered time series; (c) - cross-correlation functions between the values of the physiological parameter and the GMF vector. Ks=−lg(p)*sign(r), where r is the value of the Spearman correlation coefficient, p is its level of statistical significance. The red dotted line corresponds to the boundary level of statistical significance p=0.0045 (|Ks|>2.35).

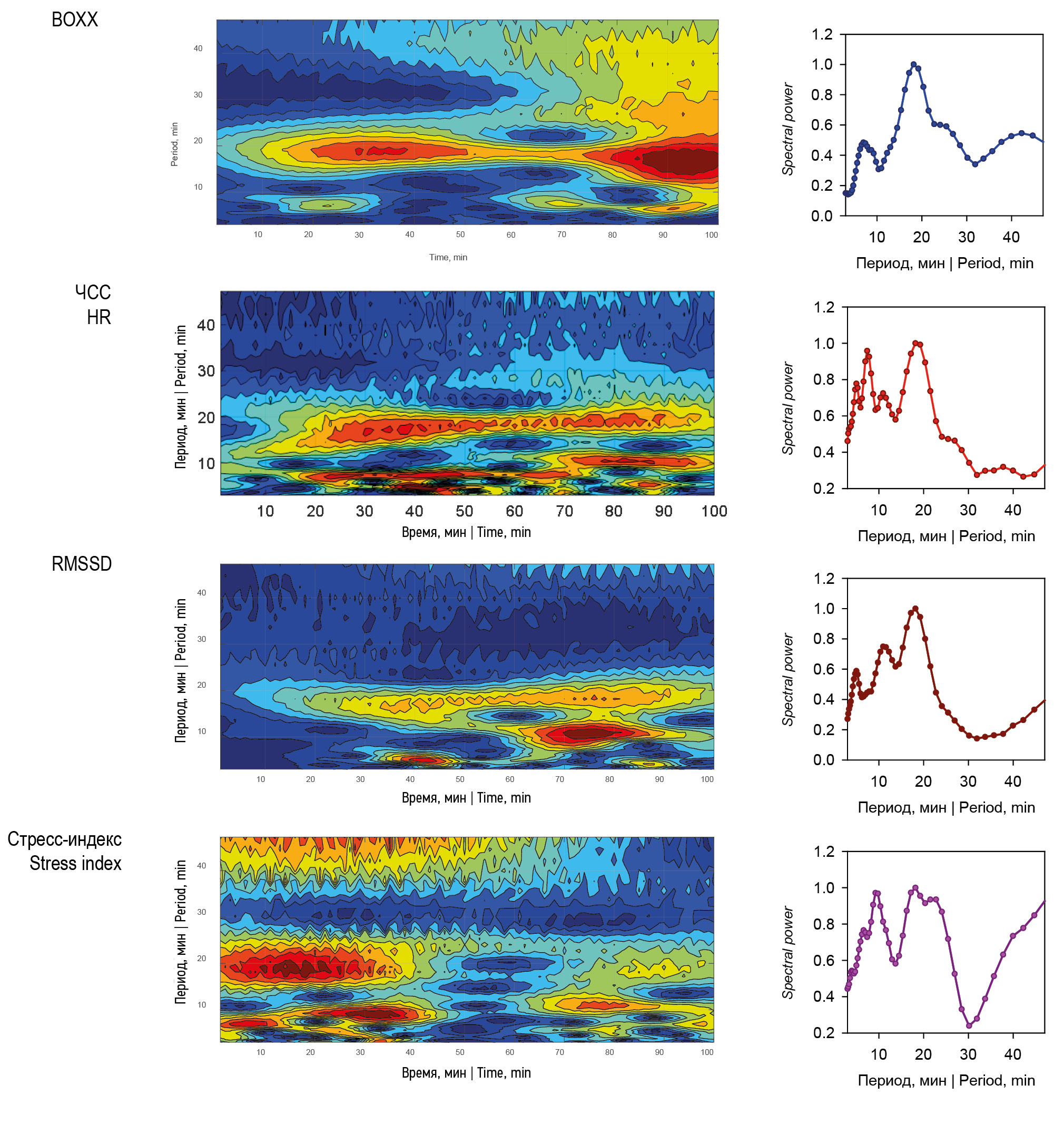

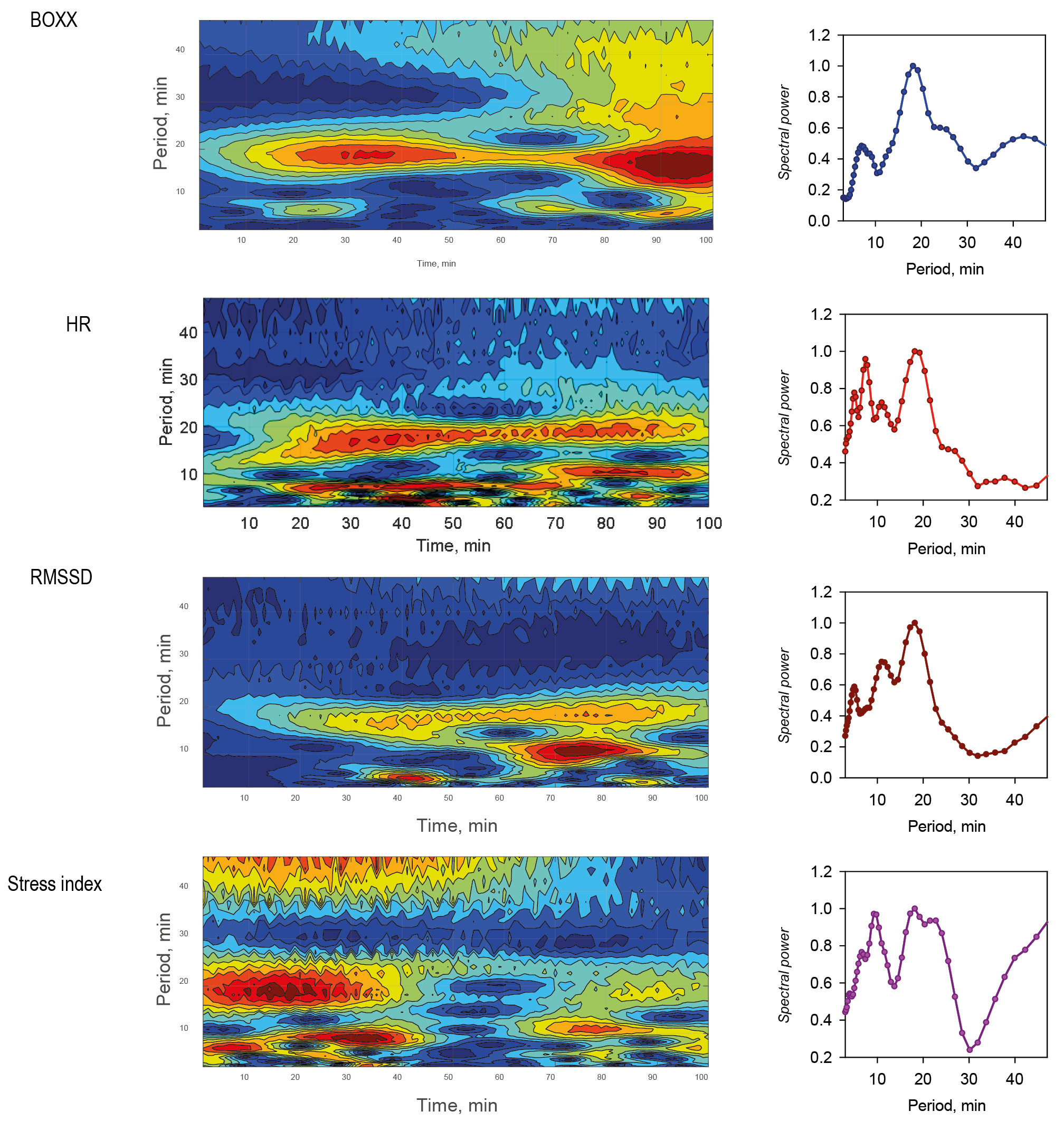

Fig. 2. Illustration of the method of comparing wavelet spectra. On the left are the wavelet spectra of the BOXX, HR, RMSSD, SI time series. On the right are the results of averaging the corresponding series on the ordinate axis.

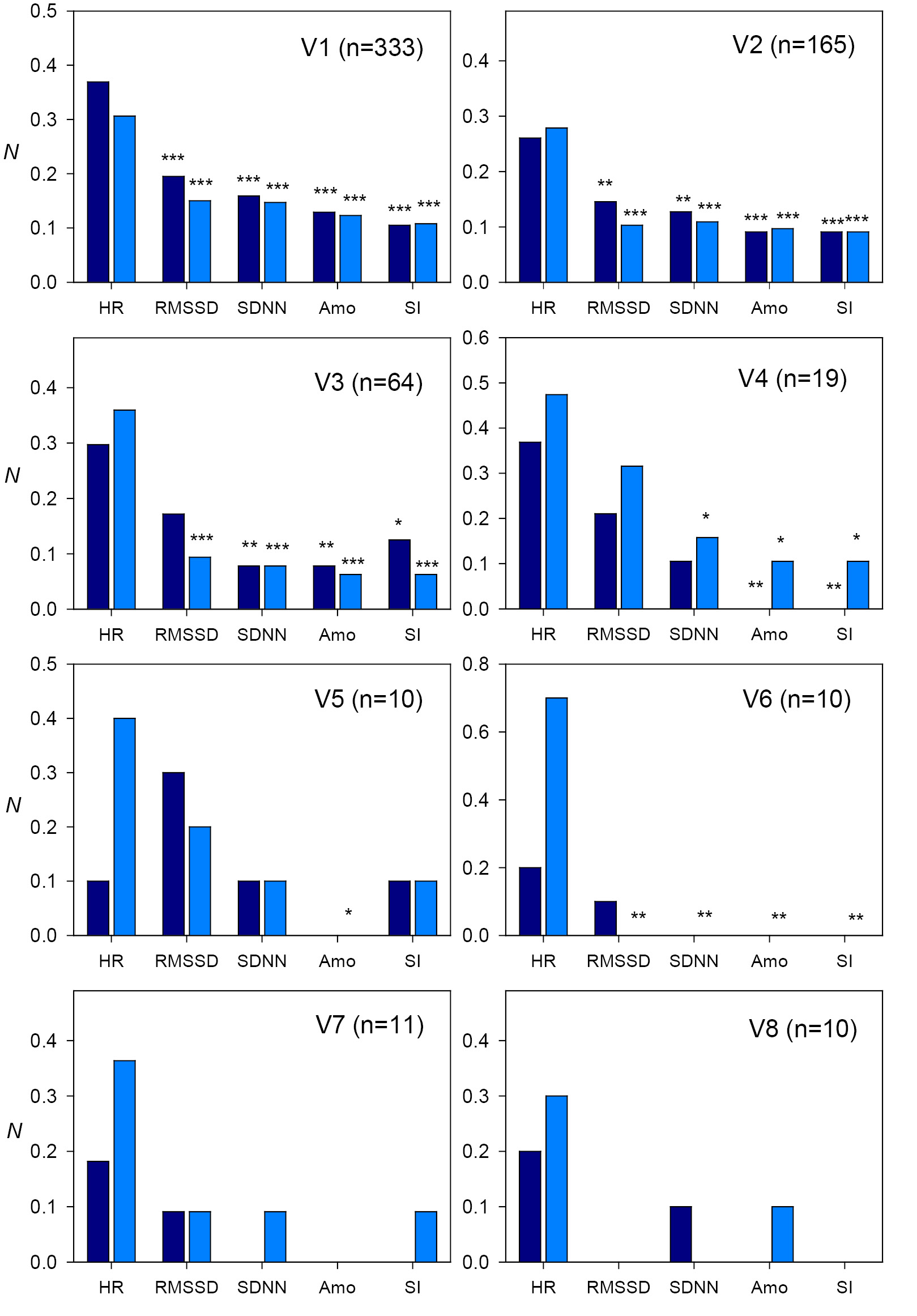

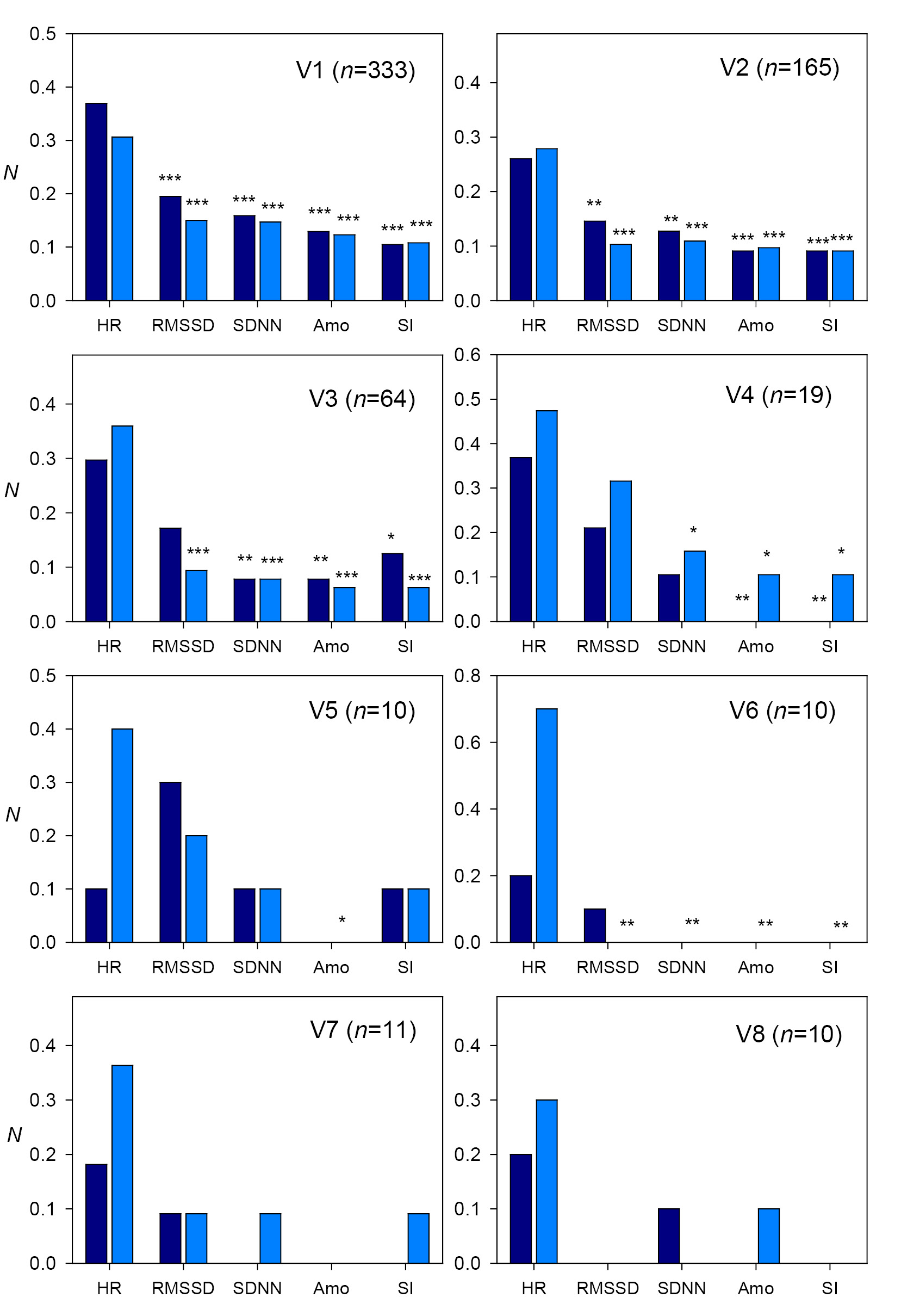

Fig. 4. Sample distributions of the frequency of synchronisation of HR and HRV indices with the components of GMP for Group 1 volunteers according to the correlation method. The designations are as in Fig. 3.

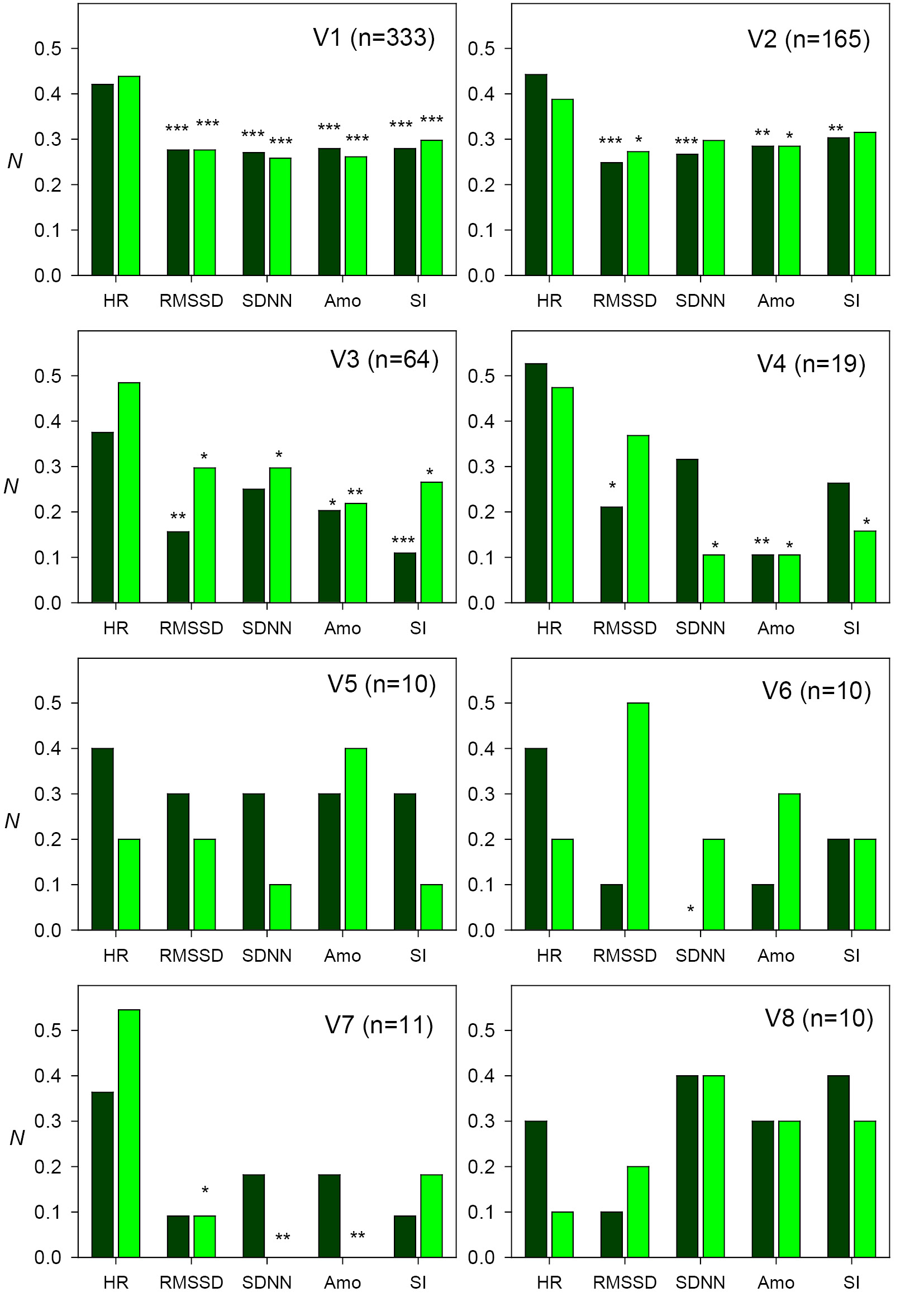

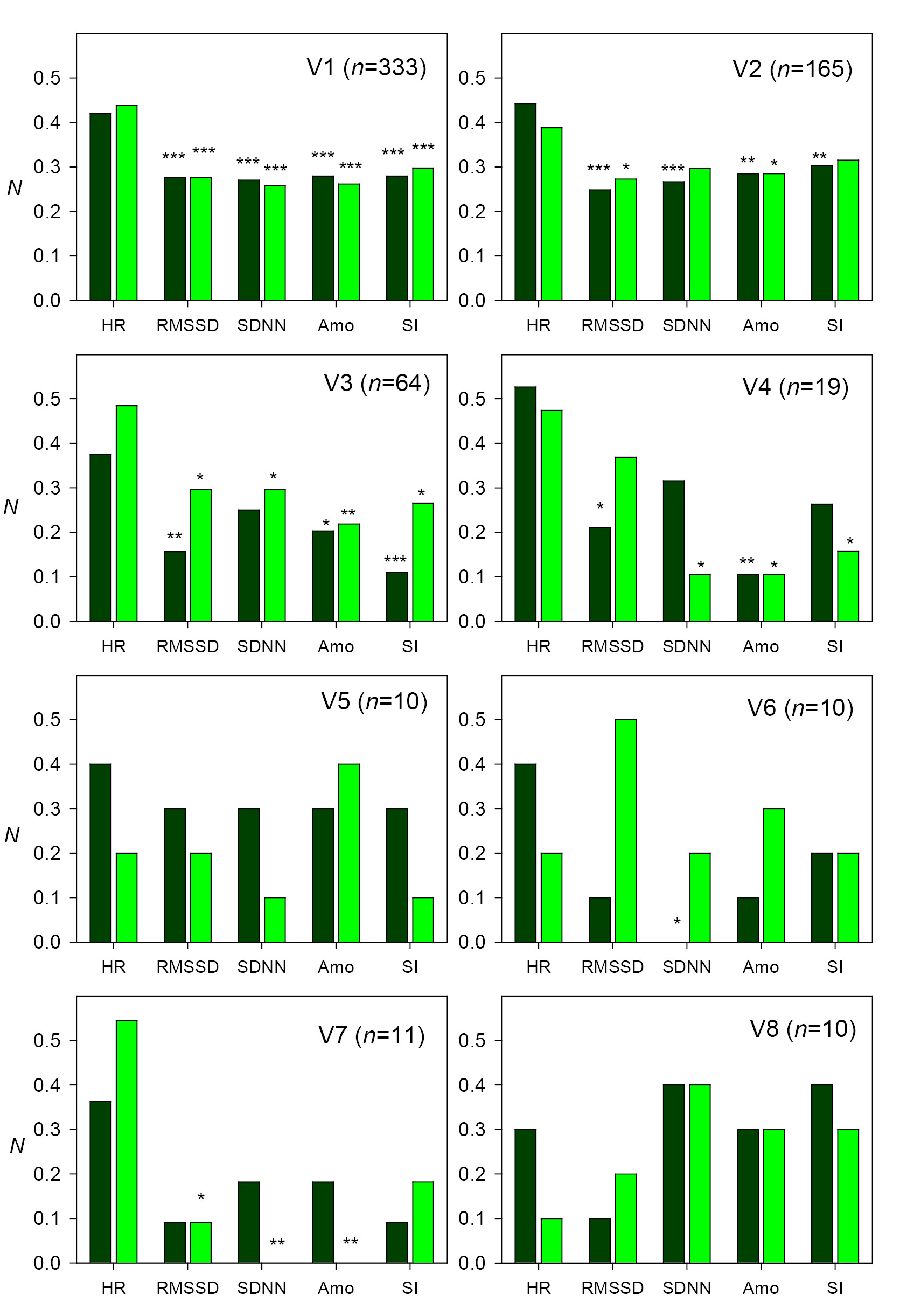

Fig. 5. Sample distributions of the frequency of synchronisation  of HR and HRV indices with the components of HMP for Group 1 volunteers according to the wavelet spectra comparison method. The designations are as in Fig. 3.

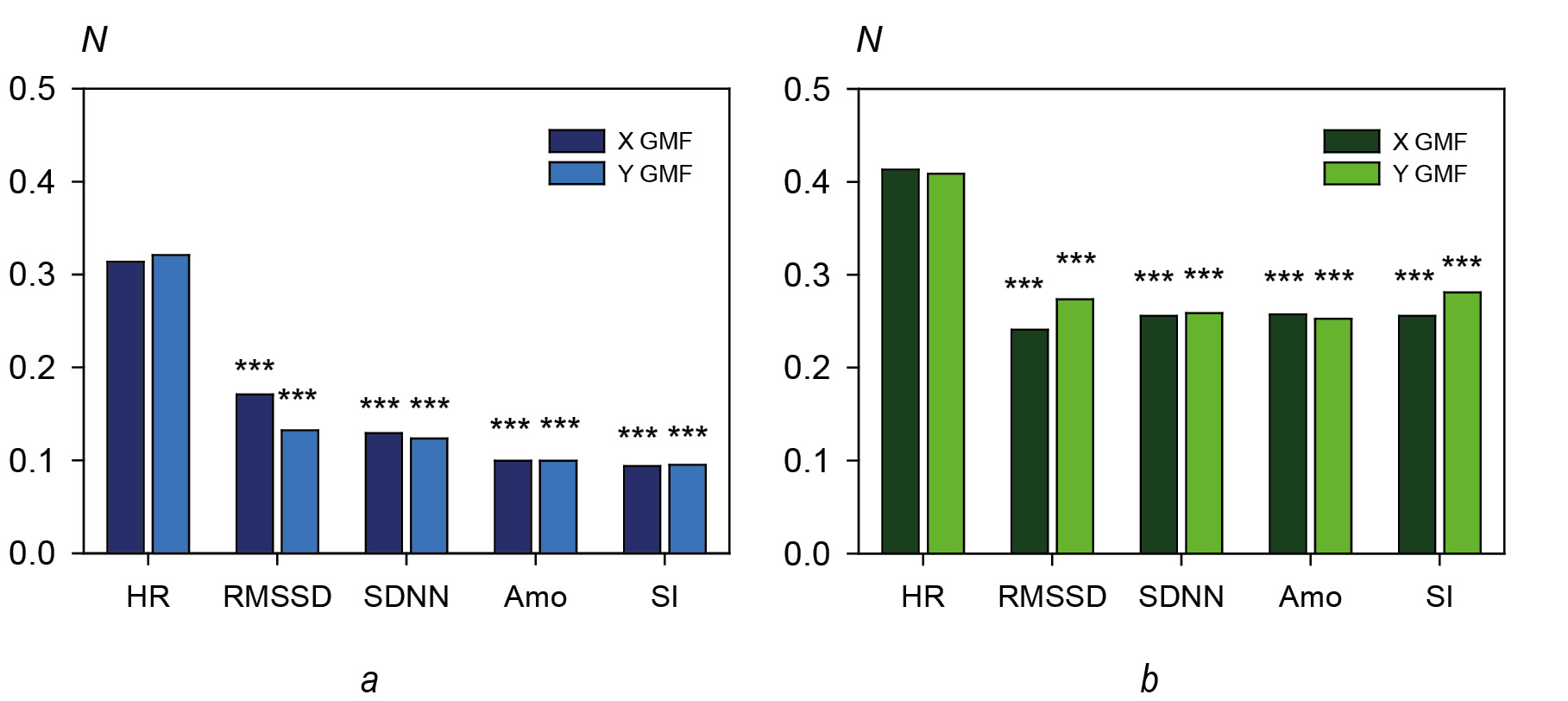

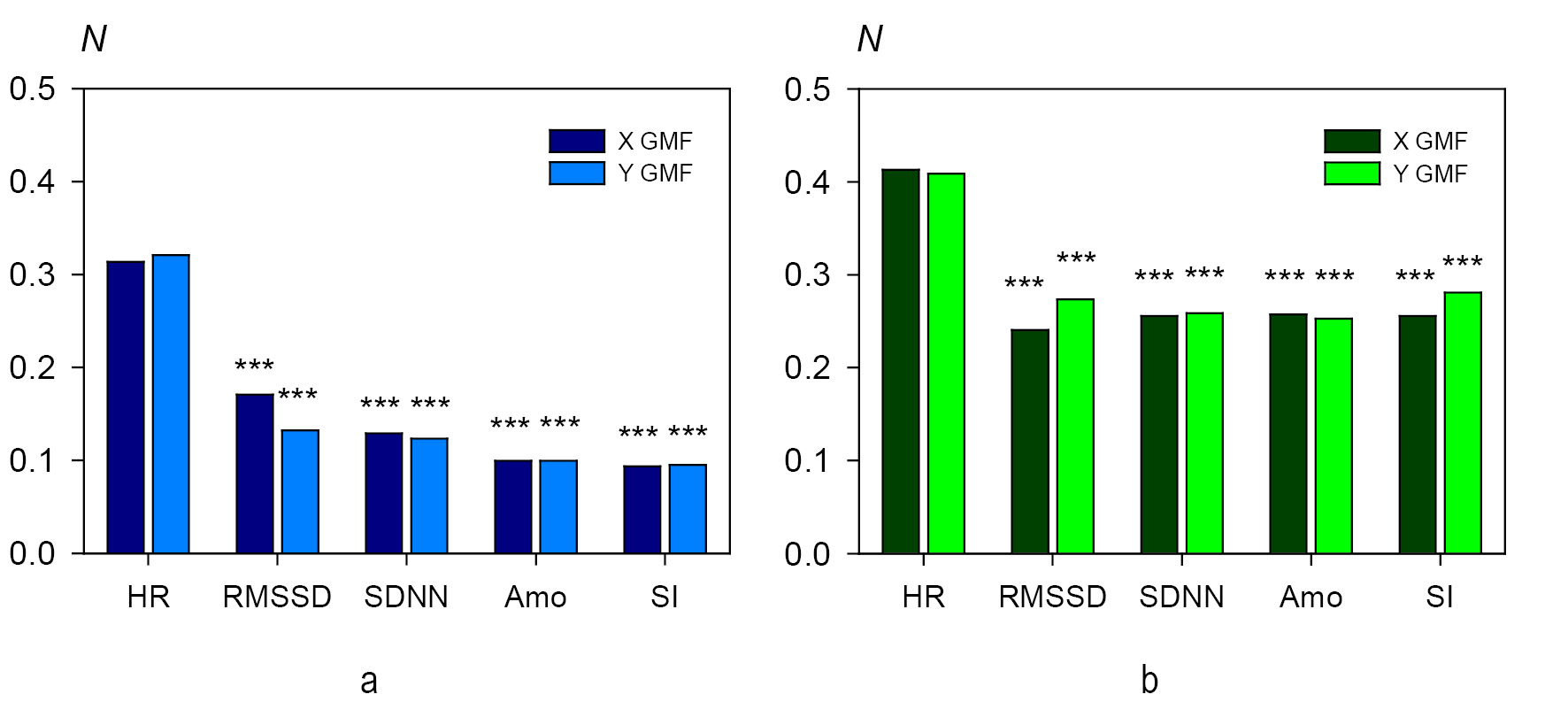

Fig. 6. Sample distributions of the frequency of cases of synchronisation of HR and HRV indices with GMR components for volunteers of Group 2. (a) cross-correlation method of analysis was used; (b) the method of comparing wavelet spectra of time series was used. The designations are as in Fig. 3.

×

About the authors

T A Zenchenko

Space Research Institute, Russian Academy of Sciences

Author for correspondence.
Email: zench@mail.ru
ORCID iD: 0000-0002-0520-2029

кандидат физикоматематических наук, ст. научный сотрудник

Russian Federation, Pushchino, Moscow Region

Lilia V. Poskotinova

N. Laverov Federal Center for Integrated Arctic Research of the Ural Branch of the Russian Academy of Sciences

Email: liliya200572@mail.ru
ORCID iD: 0000-0002-7537-0837
SPIN-code: 3148-6180

Dr. Sci. (Biology), MD, Cand. Sci. (Medicine), Associate Professor, Chief Researcher

Russian Federation, Arkhangelsk

Nataliya Khorseva

Email: sheridan1957@mail.ru
ORCID iD: 0000-0002-3444-0050

Tamara Konstantinovna Breus

Email: breus36@mail.ru
ORCID iD: 0000-0003-4057-0844
Russian Federation

References

  1. Cornélissen G, Halberg F, Breus T, et al. Non-photic solar associations of heart rate variability and myocardial infarction. J. Atmos. Sol. Terr. Phys. 2002;64:707–720. doi: 10.1016/S1364-6826(02)00032-9.
  2. Ozheredov VA, Breus TK, Gurfinkel YI, et al. Influence of some weather factors and geomagnetic activity on the development of severe cardiological pathologies. Biophysics. 2010;55(1):110-119. doi: 10.1134/S0006350910010185
  3. Mavromichalaki H, Papailiou M, Dimitrova S, et al. Space weather hazards and their impact on human cardio-health state parameters on Earth. Nat Hazards. 2012;64:1447–1459. https://doi.org/10.1007/s11069-012-0306-2
  4. Vaičiulis V, Venclovienė J, Tamošiūnas A, et al. Associations between Space Weather Events and the Incidence of Acute Myocardial Infarction and Deaths from Ischemic Heart Disease. Atmosphere. 2021;12:306. https://doi.org/10.3390/atmos12030306
  5. Podolská K. Changes of Circulatory and Nervous Diseases Mortality Patterns during Periods of Exceptional Solar Events. Atmosphere. 2021;12:203. https://doi.org/10.3390/atmos12020203
  6. Rapoport SI, Bolshakova TD, Malinovskaya NK, et al. Magnetic storms as a stress factor. Biofizika. 1998;43(4):632 639. (in russ)
  7. Khorseva NI. Using psychophysiological indices to estimate the effect of cosmophysical factors (Review). Izvestiya, Atmospheric and Oceanic Physics. 2013;49(8):839-852. doi: 10.1134/S0001433813080033.
  8. Gurfinkel YI, Sasonko ML, Ozheredov VA, Breus TK. The Effects of Space and Terrestrial Weather Factors on Arterial Stiffness and Endothelial Function in Humans Biophysics. 2018;63(2):299-306. doi: 10.1134/S0006350918020094
  9. Dimitrova S, Stoilova I, Cholakov I. Influence of local geomagnetic storms on arterial blood pressure. Bioelectromagnetics. 2004;25: 408–414. https://doi.org/10.1002/bem.20009
  10. Ozheredov VA, Chibisov SM, Blagonravov ML, et al. Influence of Geomagnetic Activity And Earth Weather Changes On Heart Rate And Blood Pressure In Young And Healthy Population. International Journal of Biometeorology. 2017;61(5):921 929. doi: 10.1007/s00484-016-1272-2
  11. Zenchenko TA, Poskotinova LV, Rekhtina AG, Zaslavskaya RM.. Relation between Microcirculation Parameters and Pc3 Geomagnetic Pulsations. Biophysics. 2010;55(4):646–651.
  12. Otsuka K, Yamanaka T, Cornelissen G, et al. Altered chronome of heart rate variability during span of high magnetic activity. Scripta medica (Brno). 2000;73:111 116.
  13. Otsuka K, Cornélissen G, Weydahl A, et al. Geomagnetic disturbance associated with decrease in heart rate variability in a subarctic area. Biomed Pharmacother. 2001;55(1):51-56. doi: 10.1016/s0753-3322(01)90005-8
  14. Alabdulgade A, Maccraty R, Atkinson M, et al. Human heart rhythm sensitivity to earth local magnetic field fluctuations. J. Vibroeng. 2015;17:3271–3278.
  15. Vasin AL, Shafirkin AV, Gurfinkel YuI. Effect of artificial alternating geomagnetic field in the millihertz range on the heart rate variability indices. Aviakosmicheskaya i ekologicheskaya meditsina. 2019;53(6):62 69. (in russ). doi: 10.21687/0233-528X-2019-53-6-62-69.
  16. Gmitrov J, Ohkubo C. Geomagnetic field decreases cardiovascular variability. Electro Magnetobiol. 1999;18:291–303. doi: 10.3109/15368379909022585
  17. Lednev VV, Belova NA, Ermakov AM, et al. Modulation of cardiac rhythm in the humans exposed to extremely weak alternating magnetic fields. Biophysics. 2008;53(6):648-654. doi: 10.1134/S0006350908060328.
  18. Pobachenko SV, Kolesnik AG, Borodin AS, Kalyuzhin VV. The contingency of parameters of human encephalograms and Schumann resonance electromagnetic fields revealed in monitoring studies. Biophysics. 2006;51(3):480-483. doi: 10.1134/S0006350906030225
  19. Timofejeva I, McCraty R, Atkinson M, et al. Identification of a Group’s Physiological Synchronization with Earth’s Magnetic Field. Int. J. Environ. Res. Public. Health. 2017;14 (9): 998. doi: 10.3390/ijerph14090998
  20. Maksimov AL, Volkov AI, Savintseva AA, et al. On the resonant interaction of Schumann biospheric frequencies and rhythms of the human brain. In: Abstracts of the VI International Congress "Weak and Superweak Fields and Radiations...", (St. Petersburg, 2012), p. 168. (in russ). www.biophys.ru/archive/congress2012/proc-p168.pdf
  21. Caswell JM, Singh M, Persinger MA. Simulated sudden increase in geomagnetic activity and its effect on heart rate variability: experimental verification of correlation studies. Life Sci Space Res. 2016;10:47–52. https://doi.org/10.1016/j.lssr.2016.08.001
  22. Elhalel G, Price C, Fixler D, Shainberg A. Cardioprotection from stress conditions by weak magnetic fields in the Schumann resonance band. Sci Rep. 2019;9:1–10. https://doi.org/10.1038/s41598-018-36341-z
  23. Gurfinkel YI, Vasin AL, Pishchalnikov RY, et al. Geomagnetic storm under laboratory conditions: Randomized experiment. Int. J. Biometeorol. 2018;62:501–512. https://doi.org/10.1007/s00484-017-1460-8
  24. Zenchenko TA, Medvedeva AA, Khorseva NI., Breus TK. Synchronization of human heart-rate indicators and geomagnetic field variations in the frequency range of 0.5–3.0 mHz. Izv. Atmos. Ocean. Phys. 2014;50:736–744. https://doi.org/10.1134/S0001433814040094
  25. Zenchenko TA, Khorseva NI, Breus TK. Long-Term Study of the Synchronization Effect between Geomagnetic Field Variations and Minute-Scale Heart-Rate Oscillations in Healthy People. Atmosphere, 2024;15:134. . https://doi.org/10.3390/atmos15010134
  26. Zenchenko TA, Jordanova M, Poskotinova LV, et al. Synchronization between Human Heart Rate Dynamics and Pc5 Geomagnetic Pulsations at Different Latitudes. Biophysics, 2014;59(6):967–974. doi: 10.1134/S0006350914060256
  27. Poskotinova L, Krivonogova E, Demin D, Zenchenko T. Differences in the Sensitivity of the Baroreflex of Heart Rate Regulation to Local Geomagnetic Field Variations in Normotensive and Hypertensive Humans. Life, 2022;12:1102. https://doi.org/10.3390/life12071102
  28. Lukyanova SN. Neuroeffects of microwave EMF of non-thermal intensity and short exposure. Radiation biology. Radioecology. 2024;64(3):244–256. (in russ). doi: 10.31857/S0869803124030026
  29. Davis GE Jr., Lowell WE. Chaotic solar cycles modulate the incidence and severity of mental illness. Med. Hypotheses, 2004;62(2):207 214. doi: 10.1016/j.mehy.2003.11.006
  30. Baevsky RM, Ivanov GG, Chireikin LV, et al. Analysis of heart rate variability using various electrographic systems (methodological recommendations). Vestnik aritmologii. 2002;24:65 87. (in russ).
  31. Poskotinova LV, Krivonogova EV, Zenchenko TA, Demin DB. Features of synchronization of heart rate variability indicators and local variations in geomagnetic field components in individuals with different levels of blood pressure. In: Collection of scientific papers of the VI Congress of Biophysicists of Russia. 2019. p. 364.
  32. Zenchenko TA, Khorseva NI, Stankevich AA. The effect of synchronizing the human heart rhythm with geomagnetic field variations: are there distinguished frequencies? Biofizika. 2024;69(4):915-926. (in russ). doi: 10.31857/S0006302924040221
  33. Poskotinova LV, Demin DB, Krivonogova EV, et al. Neurophysiological mechanisms of adaptation of Arctic residents with socially significant neurological and cardiovascular disorders and methods for correcting maladaptive disorders. Research report, 2021.
  34. Sonkodi B. LF Power of HRV Could Be the Piezo2 Activity Level in Baroreceptors with Some Piezo1 Residual Activity Contribution. Int. J. Mol. Sci. 2023;24:7038. doi: 10.3390/ijms24087038
  35. Zhou Z, Martinac B. Mechanisms of PIEZO Channel Inactivation. Int. J. Mol. Sci. 2023;24:14113. https://doi.org/10.3390/ ijms241814113
  36. Mamberger KK, Makedonsky DF, Rudenko MYu, Rudenko SM. Functional connection of the sinoatrial node of the right atrium with low-pressure baroreceptors of the aorta. Izvestiya Yuzhnogo federal'nogo universiteta. Tekhnicheskie nauki. 2009;96(7):23 29 (in russ).
  37. Li K, Shi Y, Gonye EC, Bayliss DA. TRPM4 Contributes to Subthreshold Membrane Potential Oscillations in Multiple Mouse Pacemaker Neurons. eNeuro. 2021; Nov 17;8(6):ENEURO.0212-21.2021. doi: 10.1523/ENEURO.0212-21.2021
  38. Hu Y, Cang J, Hiraishi K, et al. The Role of TRPM4 in Cardiac Electrophysiology and Arrhythmogenesis. Int J Mol Sci. 2023;24(14):11798. doi: 10.3390/ijms241411798
